BDS400_Inverted Trinocular Biological Microscope
형광: 12,100,000 원
일반: 3,850,000 원
(카메라 별도)
BDS400 Inverted Biological Microscope
-
Seidentopf Trinocular Head, Light Split Switch E100:P0 / E20:P80
-
LWD Infinity Plan Fluorescent Objectives Bright Field & Phase Contrast Observation Supported
-
LWD Condenser N.A.0.3 Working Distance 72mm, Up To 195mm Without Condenser
-
Standard Halogen 6V30W Koehler Illumination, 5W LED Optional For Choice
-
Fluorescence Attachment Can Be Added To Upgrade It As Fluorescent Microscope
Performance characteristics
-
New research and new development
-
Apply to observation and cultivation for cell tissue
-
Wide field eyepiece, view field up to Φ23mm，more comfortable for observation
-
BDS400 Inverted Biological Microscope
-
Long working distance condenser N.A. 0.30，Working distance：72mm
-
Working distance: 195mm (without condenser)，available for extra high culture dish
-
Large size stage, convenient for research. Size：240mm（X）× 210（Y）mm
-
Mechanical stage available for 96 holes plate. Moving range：128mm（X）× 80（Y）mm
-
BDS400 Inverted Fluorescence Microscope
-

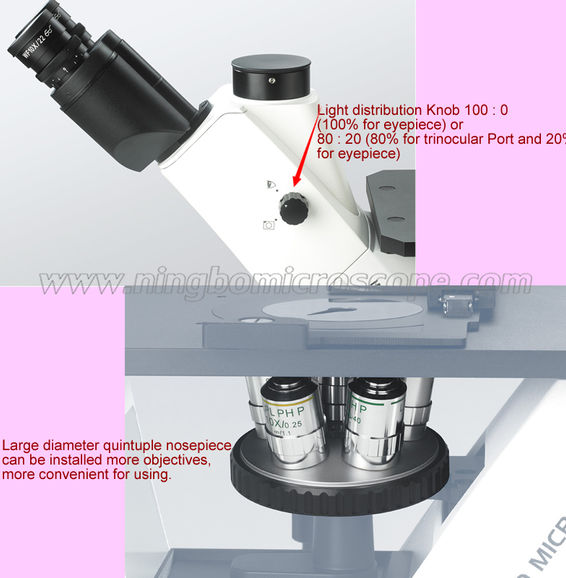

Large diameter quintuple nosepiece can be installed more objectives, more convenient for using.
-
Light distribution (both): 100 : 0 (100% for eyepiece);
80 : 20 (80% for trinocular head and 20% for eyepiece)
Culture Dish Holder
Objective Parameter List (Cover-glass thickness1.1mm)
LWD Infinity Plan Objectives
LWD Infinity Plan Phase
Contrast Objectives
